Please allow 2-3 week for shipping at this time.
Two rows of 1 1/4" tubes, dual thermostatic controlled 11" fans with 2550 CFM and complete harness is a direct fit needing no modifications for your mustang build. These aluminum radiators contain 14 fins per square inch. The recessed radiator cap will provide you the necessary hood clearance.
Designed for 67-70, you may need to modify these radiators and support brackets to fit your 65 or 66 Mustang.
Rated to handle up to 750HP. Designed for non-supercharged engines. For high horsepower application, please consider the 1967-1970 Supercharged Coyote / 5.8 / Godzilla Radiator.
Fans draw 15 amps each at start up and 10 amps each during running.
Check out our Polished Billet Aluminum Radiator Cap to dress up your radiator.
Dimensions
Width 25 5/8"
Height 20 1/2"
Depth 7" (including fans)
Depth between fan motors 5 1/2"
Depth without fans installed 3 1/4"

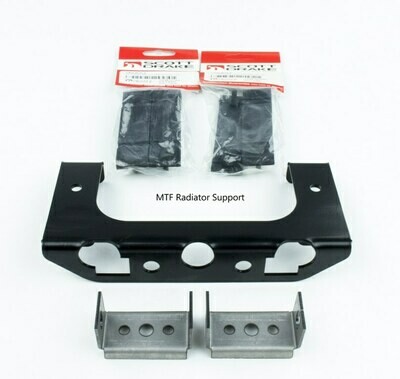

Upper and lower brackets sold separately. (Rad-Bracket-67-68)
Before ordering, please verify which side (driver or passenger) you need for your lower radiator hose connection. We can special order them if they are on the passenger side and please allow about 3 weeks.
NOTE: There is a $100 price increase for special ordered radiators with a passenger-side outlet and additional lead time required.
1965-1970 Ford Mustang
