1967-1970 5.4/5.8/5.0 Coyote (Supercharged)/ Godzilla Radiator

$1,659.00
1
Save this product for later
Share this product with your friends
1967-1970 5.4/5.8/5.0 Coyote (Supercharged)/ Godzilla Radiator
Product Details
Model: RAD-5.4/5.8

This is a special order item, please allow 6-8 weeks for delivery.

[tab name='Product Description']

1967-70

5.4 / 5.8 / 5.0 Coyote (Supercharged) / Godzilla

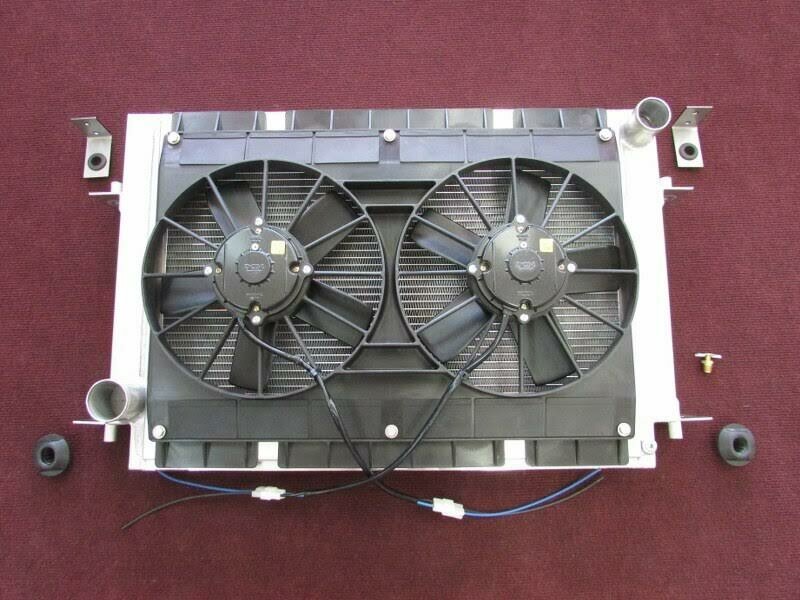

Our crossflow radiator designed by Mustangs To Fear and built by Griffin features two rows of 1-1/4” tubes, dual thermostatic controlled 11” fans that flow 2550 CFM, and a wire harness. This radiator contains 14 fins per square inch and is designed for engines up to 900HP. Brackets included

Fitment:
Our radiator is designed as a direct fit with our MTF Radiator Support. A stock radiator support can also be used, but will require some modification. The recessed radiator cap will provide the necessary hood clearance into your 1967-70 Mustang. This radiator will also fit into a 1965-66 Mustang, but some additional modification to the stock radiator support and/or brackets may be required.
Please check out our Polished Billet Radiator Cap Cover as an accessory dress up item.
Specs:
Fans will draw 20 amps each at start up and 10 amps each at run.
Dimensions:
 Width 30.0”
 Height 19.0”
 Depth 3.0” (radiator only)
 Depth 8.0” (radiator + fans)
 Upper inlet diameter 1.75”
 Lower outlet diameter 2.0”
